PUNCH IT DEEP

Cannon PRO 160

Casting light up to 12m deep, meet the industry standard.

SEEING IS BELIEVING

Meet the light that changed everything. For over 8 years, the Cannon series LED has become the industry standard for larger aquatic and zoological exhibits. Designed with focus around the needs of the animals, the aquarist, and the exhibit theme – its a highly adaptable light that’s been used in aquariums and zoos around the world.

Now delivering over 20% more light than its predecessor, our new high-density LED multi-chip emitter coupled with polished reflector and glass optical lens produces a sharp beam of light – penetrating water and air more effectively than metal halides.

SUPERIOR ILLUMINATION

When it comes to penetrating water, nothing comes close. Featuring the latest in high-density LED emitter technology, the Cannon PRO LED is available in multiple industry-specific color spectrums. Coupled with interchangeable glass optical lenses and a polished reflector, it’s easy to customize and adapt to create a tailor-made lighting solution for almost any exhibit.

Featuring a marine-grade die cast aluminum housing, its thermally efficient and very effective at transferring heat without the need of a cooling fan. The entire light is IP67 rated and ETL approved for wet environments, providing long life in even the harshest environments.

MOUNT IT ANYWHERE

An integrated aluminum swivel bracket delivers light exactly where you want it, providing 360° rotation and 0°- 60° tilt. Glass optical lenses (45°, 60°, 90°, and 120°) delivers light uniformly to a precise target area with an exceptionally high punch rate and optimal spread. Included silicone lens snoot helps prevents any light spillage.

SIMPLY BRILLIANT

The Cannon 160 LEDs incorporates the latest in Meanwell LED driver technology. Featuring a robust circular profile, modular swivel design and excellent beam quality, you can light virtually any themed exhibit without sacrificing performance.

  • Powerful multi-chip LED efficiently penetrates water
  • Easy to adjust beam angle and light direction
  • Plug-and-light installation, no wiring required
  • Modular – use multiple LEDs together, adjust and blend
  • Dimmer compatible – 1-10%, PWM, Internal Dial
  • ETL Approved for Wet Environments, IP 65 Rated

FIND THE RIGHT LIGHT FOR YOUR PROJECT

Cannon PRO LEDs are available in seven color spectrums and include mounting swivel brackets, 3 glass optical lenses, snoot, 120VAC power cord and mounting hardware.

MODEL#COLOR SPECTRUMFLUXCRIEFFICACYMAX. WATTSL90CONTROL METHOD
68708,000K White + RGB7023 lm81.181.2 lm/w86.5w>7,500 hrIR Infrared w/Remote - Adjust Color & Intensity
687110,000K WHITE11700 lm86.982.7 lm/w134.5w>7,500 hr1-10V, PWM, Internal Dial - Adjust Intensity
68725,000K WHITE (FULL SPECTRUM)13233 lm73.9101.7 lm/w132.2w>7,500 hr1-10V, PWM, Internal Dial - Adjust Intensity
68738,000K / UVA9516 lm81.469.7 lm/w137.7w>7,500 hr1-10V, PWM, Internal Dial - Adjust Intensity
6874True RED 660nm / BLUE 460nm10216 lm74.575.9 lm/w134.6w>7,500 hr1-10V, PWM, Internal Dial - Adjust Intensity
6878MARINE ACTINIC6528 lm80.275.3 lm/w86.7w>7,500 hrIR Infrared w/Remote - Adjust Color & Intensity
6879450-460nm BLUE2612 lm65.120.3 lm/w130.5w>7,500 hr1-10V, PWM, Internal Dial - Adjust Intensity
** Models 6870 & 6878 include integrated controller and wireless remote ** (These models are not connectable to an external controller)

WHAT’S INCLUDED

Each CannonPro LED Pendant is pre-assembled and includes:

1 – High-density multichip LED
1 – Swivel mounting bracket and mounting hardware
1 – Meanwell HBG160 LED driver
1 – Threaded eye hook with a safety harness cable
3 – Glass optical lenses – 60º, 90º & 120º (90º pre-installed)
1 – 2.5” Aluminum light snoot
Complete Instructions

ELECTRICAL SPECS

Input Voltage: 90-305VAC
Output Voltage: 36VDC
Power Consumption: ~ 55w/~115-125w
Working Temp: -40 to +60C
Working Humidity: 20~95% RH
Driver: Meanwell HBG160 Series (160 watt)
Protections: Short circuit/ over current / over voltage / over temp
Built-in PFC Function, high efficiency 93.5%
Driver Certifications: UL, cUL, CE
Dimming Input: 0-10V, PWM and Resistance

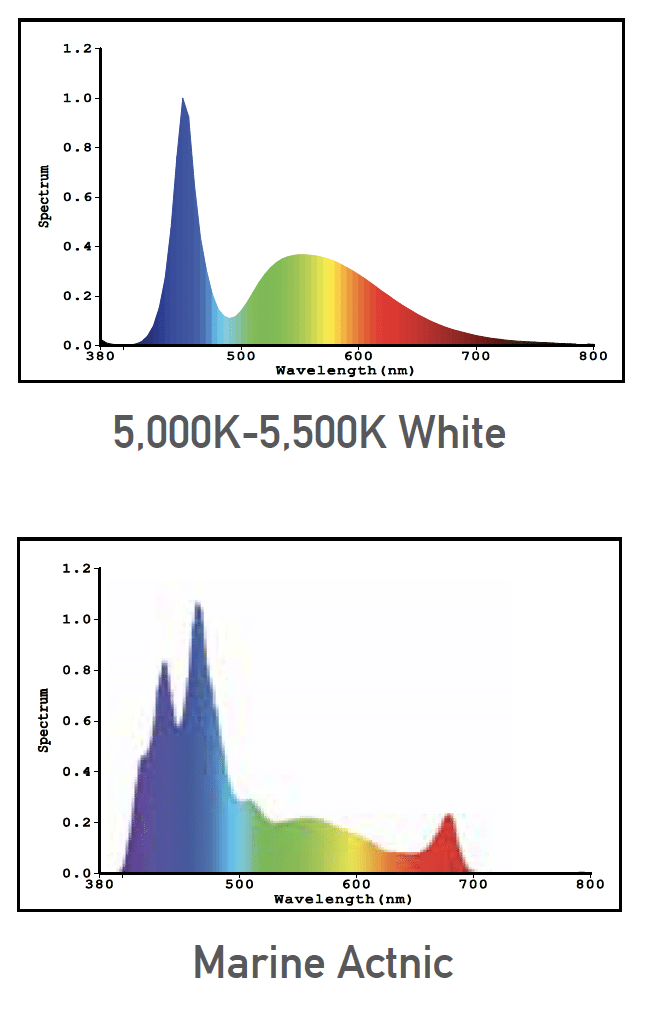

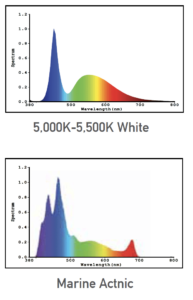

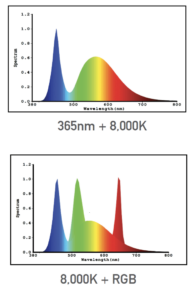

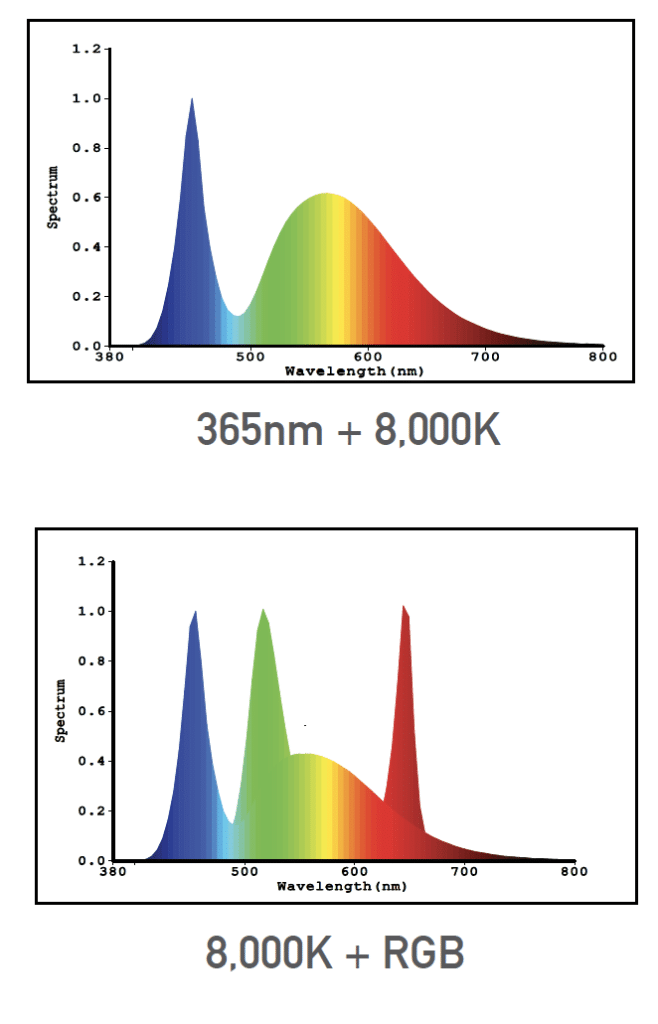

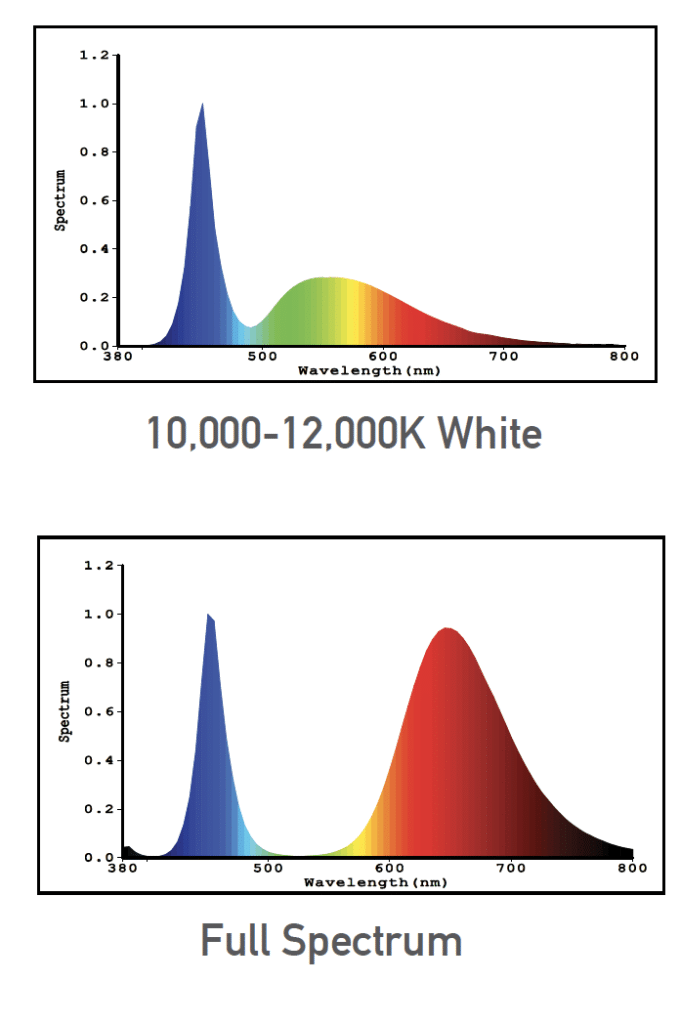

SPECTRUM DATA

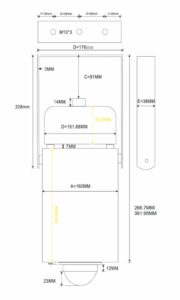

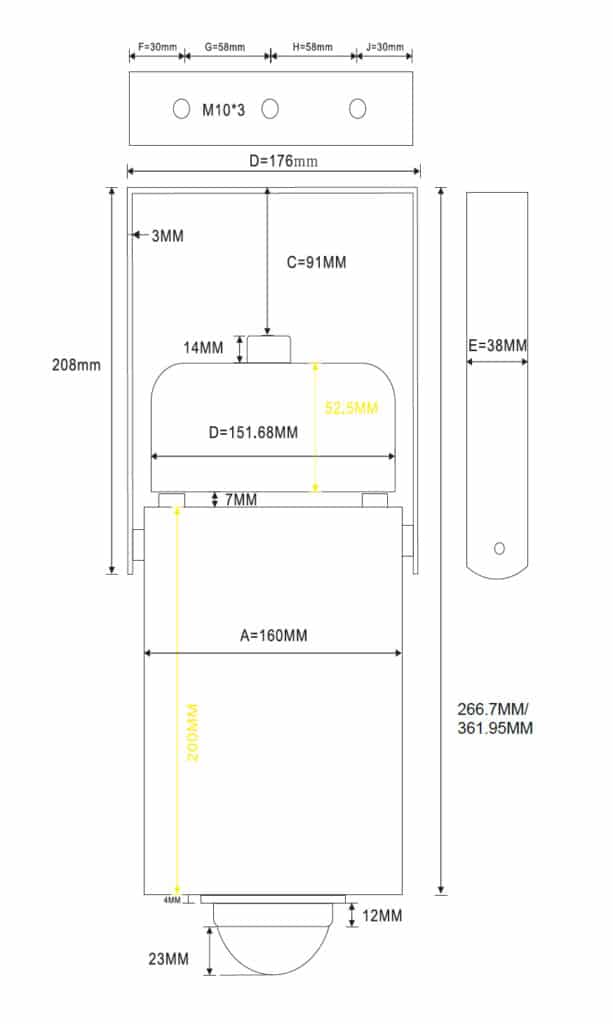

DIMENSIONS


Total Height: 310/397mm
Diameter: 160mm
Weight: 3.17 kg
Material: Aluminum
Snoot Length (optional):63.5mm

Click to Enlarge
